433Mhz Remote Control Switch for Light,Door, Garage Universal Remote AC 85V ~ 250V 110V 220V 2CH Relay Receiver and Controller

433Mhz Remote Control Switch for Light,Door, Garage Universal Remote AC 85V ~ 250V 110V 220V 2CH Relay Receiver and Controller

Regular price $24.90 USD
Regular price Sale price $24.90 USD
Sale Sold out
Shipping calculated at checkout.
Color



HTB1gTE9XijrK1RjSsplq6xHmVXas



Product description

433Mhz Remote Control Switch for Light,Door, Garage Universal ac Remote AC 85V ~ 250V 110V 220V 2CH Relay Receiver and Controller

  Product Application Area

Products can be used in lighting, garage doors, shutter doors, remote control curtains, DC motors, motor reversing. and many more


  Package include
Option Package 1:

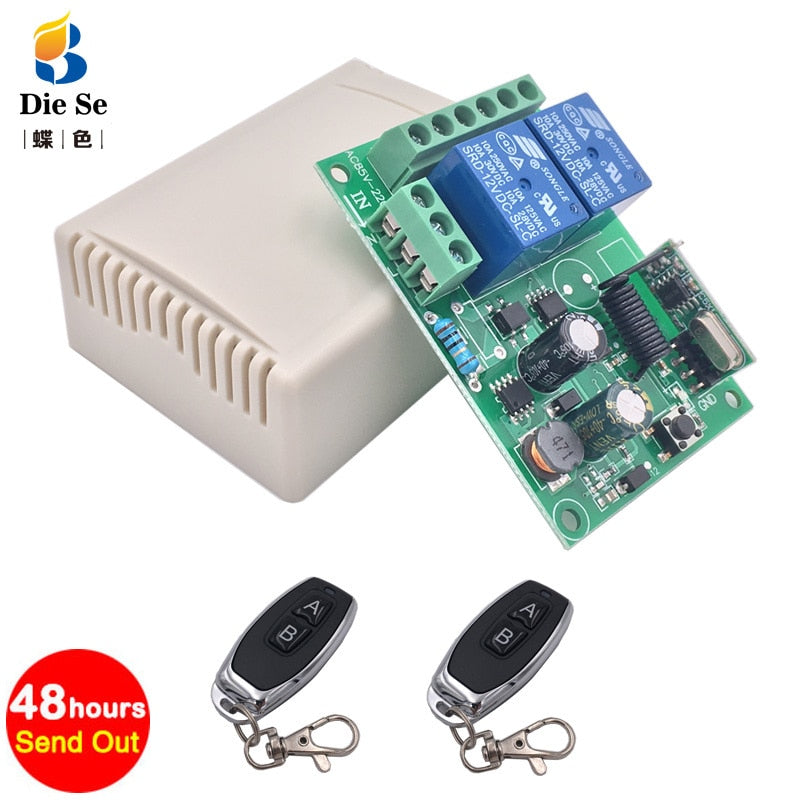

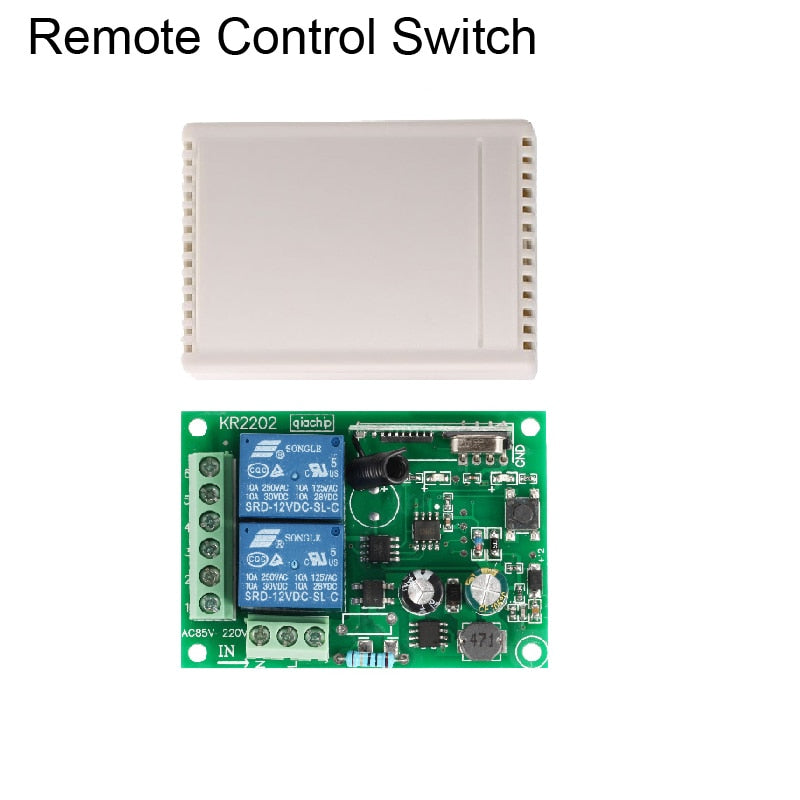

Receiver module *1PCS(Include shell)
Option Package 2:

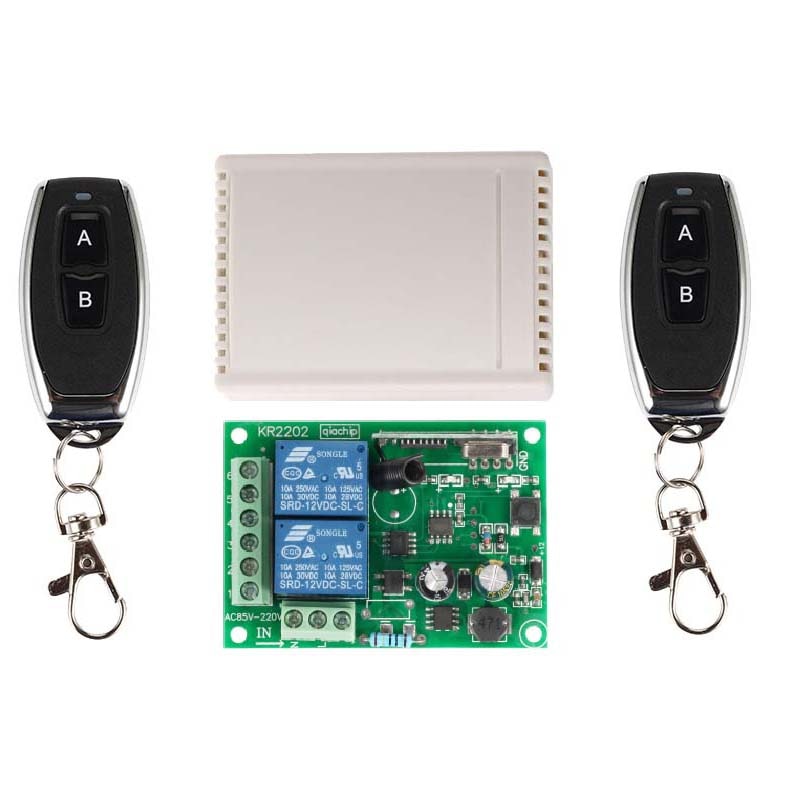

Receiver module *1PCS(Include shell) and 1PCS Remote Control (Included Battery)
Option Package 3:
Receiver module *1PCS(Include shell) and 2PCS Remote Controls (Included Battery)
Option Package 4:

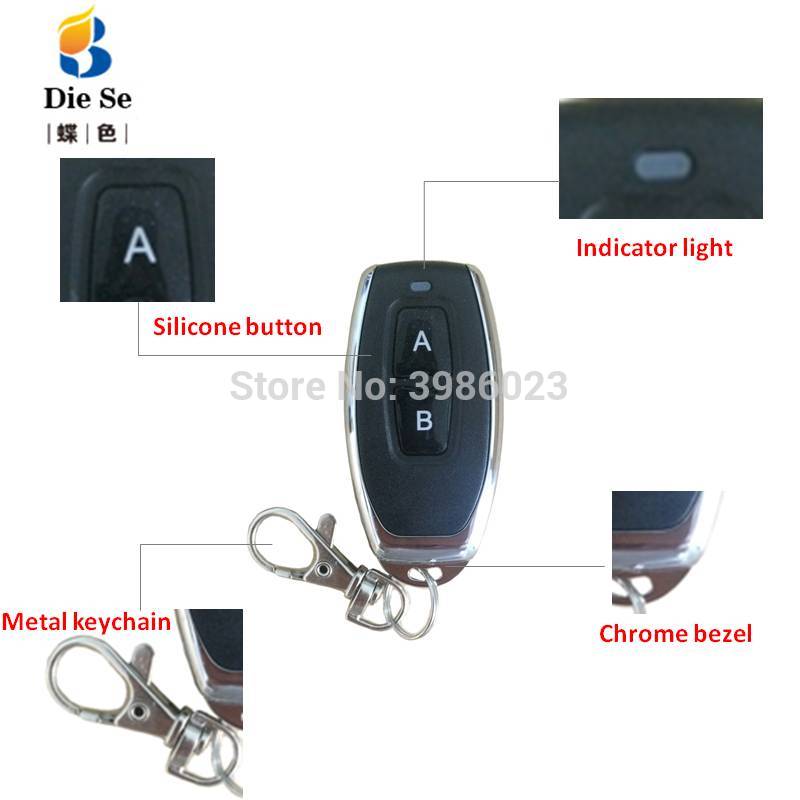

1PCS Remote Control (Included Battery)
34
  Display

  Technical Data
  • Input Power:AC 85V-250V
  • Standby Current:<8.5MA
  • RF Frequency: 433M
  • RF working mode: superheterodyne
  • Receive sensitivity: > 97 dbm
  • Transmitting distance: 20-100 m ( open space)
  • Decoding mode: MCU software decoding
  • Remote storage: 25 pcs
  • Support remote type: Learning code (1527 encoding )
  • Working mode: Momentary, Toggle
  • Wiring type:fixed terminal
  • Output Terminal :NO , NC , COM
  • Dimension of PCB:68*47*26mm  (L,W,H)

  Products  Display
1535765458(1)

Tips:
All of our products are of high quality! If you have other needs, please feel free to purchase them in our store.

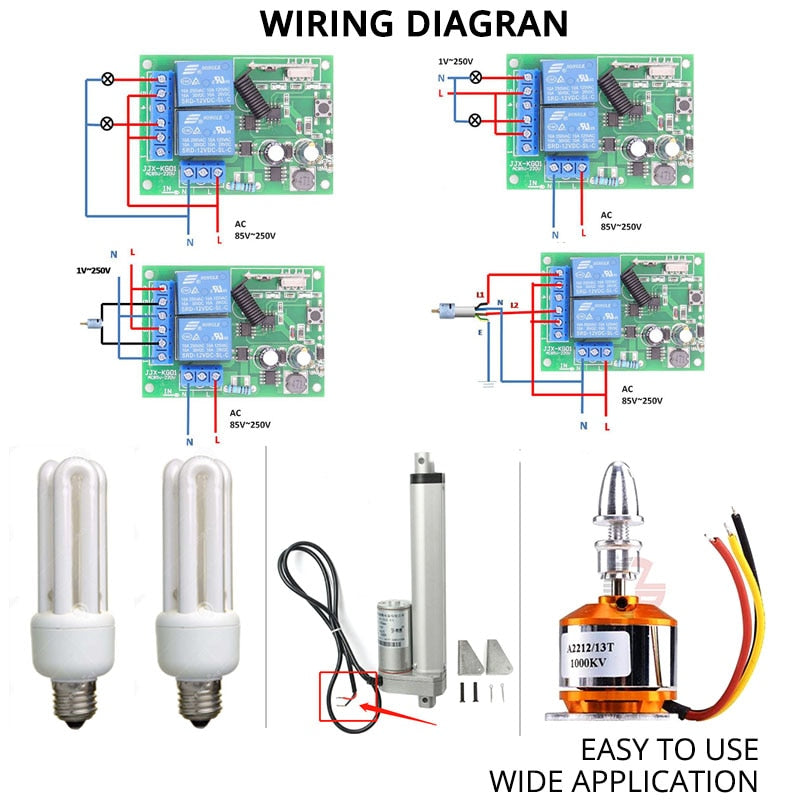

  Wiring diagram

L(Live wire): Input 85V - 250V Live wire
N(Neutral wire):Input 85V - 250V Neutral wire
NC:Normally closed Output
COM:Common port
NO:Normally open Output
  Circuit Connection modes




  Operating Mode

You can match the Remote Control with the Receiver Switch Module  in 3 modes.


Remote mode 1:
 Momentary Mode

Press and hold on one button -> ON; Release the button -> OFF

Details:
Press one button (on the  remote control) , the relay (on the receiver board) turn to switch-on
Release the button, the relay turn to switch-off.


Remote mode 2:
 Toggle Mode

Press one button -> ON; Press the same button again -> OFF

Details:
Press one button (on the  remote control) once , the relay (on the receiver board) turn to switch-on
Press the same  button  again  , the relay turn to  switch-off.


Remote mode 3:    Latched Mode

Press button "A" -> ON; Press button "B" ->  OFF(at the same time another channel ON)

Details:
Press one button (on the  remote control) once , the relay (on the receiver board) turn to switch-on
Press the another  button   , the relay turn to  switch-off( at the same time another channel ON ).



  Set Up

   -  Part 1:  Delete the existing data about remote mode

   Note: When you receive our products, it maybe set in one remote mode randomly, that because each product got test when it can be arranged to shipment.So, please delete the existing data about  remote mode  for the first application.

Press the learning button on the Receiver Switch Module board 8 timesthe existing data are deleted successfully.
After deleted the data, all the remote control cannot work any more.




  -  Part 2:  Set up the Remote Mode

Set up : Momentary Mode

STEP 1
Press the learning button on the Receiver board once.
Wait for a moment , the LED will turn off , indicating you entered the learning state.

STEP 2
Press one button on the  Remote Control , the LED on the receiver board will flash on then off indicating the button was learned.

STEP 3
Press another button on the Remote Control, watching the LED go on and off again.
Wait 3 seconds, the LED will turn on again, indicating system is ready for use.


Set up :Toggle Mode

STEP 1
Press the learning button on the Receiver board twice.
Wait for a moment , the LED will turn off , indicating you entered the learning state.

STEP 2
Press one button on the Remote Control, the LED on the receiver board will flash on then turn off ,  indicating the button was learned.

STEP 3
Press another button  on the  Remote Control , watching the LED go on and off again.
Wait 3 seconds, the LED indicator will turn on again , indicating system is ready for use

Set up :L atched Mode
STEP 1
Press the learning button on the Receiver board 3 times.

STEP 2
Press one button on the Remote Control,

STEP 3
Press another button   on the   Remote Control
Wait 3 seconds, the LED indicator will turn on again , indicating system is ready for use

On this products details page, there is a demonstration video available.

*If you do not understand clearly. Please send us a message to let us know. We will do our best to service each of our customers. Enjoy your shopping!*
